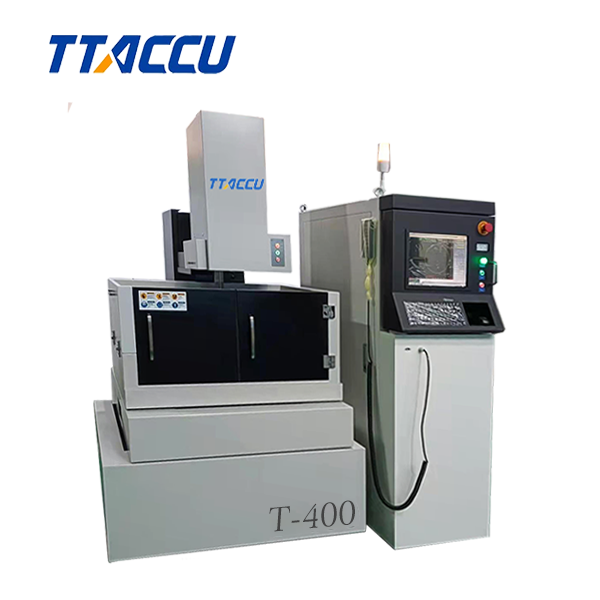

Split-Type Medium-Speed Wire EDM Machine-T400
The Medium-Speed Wire EDM Machine offers precise, efficient cutting for complex metal parts. It combines high cutting speed with excellent surface finish and low wire consumption. Ideal for mold making, tooling, and precision components, it ensures stable performance and easy operation.
1.High Precision Cutting – Suitable for complex metal parts with tight tolerances.
2.Efficient Performance – Combines fast cutting speed with stable operation.
3.Excellent Surface Finish – Achieves smooth surfaces with low Ra values.
4.Low Wire Consumption – Reduces operating cost with efficient wire usage.
5.User-Friendly Operation – Easy to use, ideal for both skilled and general operators.
6.Versatile Applications – Perfect for mold making, tooling, and precision component manufacturing.
Product Details
1. Cutting Precision:Supports up to 7-pass cutting with surface roughness reaching Ra ≤ 0.6μm. A typical 1 rough + 2 finish cuts can already deliver excellent accuracy.
2. Wire Feeding System:Intelligent variable-frequency design adjusts speed automatically between 3–11 m/s, using non-contact switching for extended motor life.
3. Wire Tensioning:Dual-side automatic wire tensioning reduces vibration during direction change, enhancing cut stability and minimizing surface striping.
4. Power Supply:Advanced streak-free discharge system eliminates common black-and-white ripple effects during multi-pass cutting.
5. Ease of Use:Auto wire threading, expert parameter library, and intuitive CNC interface streamline setup and improve productivity.
6.Component Quality:All key electrical parts use premium brands like Panasonic and Schneider, ensuring durability and performance consistency.
No. | Item | Unit | Parameter | Remarks |
---|---|---|---|---|
1 | Machine size | mm | 1650*2000*1900 | |
2 | Machine weight | KG | 2500 | |
3 | Table travel (x×y) | mm | 500*400 | |
4 | Table size | mm | 760*540 | |
5 | UV axis travel | mm | 40*40 | |
6 | Maximum thickness | mm | 300/500 | |
7 | Max. cutting taper | degree | ±6/80mm | |
8 | Maximum workpiece mass | KG | 500 | |
9 | Optimum machining accuracy | mm | ±0.005 | |
10 | Optimum roughness Ra | µm | 0.8~1.0 | |
11 | Electrode wire diameter φ | mm | 0.12~0.25 | |
12 | Maximum cutting speed | mm²/min | 260 | |
13 | Type of cutting fluid | / | Aqueous / Emulsified paste | |
14 | Cutting fluid filtration method | Sedimentation, filter cartridge, magnetic suction | ||
15 | Cutting fluid filtration accuracy | mm | 0.01 | |
16 | Cutting fluid tank capacity | L | 100 | |
17 | Maximum processing current | A | 10 | |
18 | Minimum command unit | mm | 0.001 | |
19 | XY-axis drive type | AC servo drive | ||
20 | UV-axis drive type | Hybrid motor (subdivided) | Supports rapid traverse and high accuracy. | |
21 | Wire transport system control method | Frequency control | ||
22 | Wire transport speed | m/s | 3.6~11.6 | |
23 | Maximum power consumption of machine | KVA | 2.5 | |
24 | Round runout of wire storage cylinder | mm | 0.01 |

The device features a high-frequency discharge system with high efficiency, low wire consumption, and easy adjustment. It can process materials up to 300mm thick with ease and can handle thicknesses exceeding 1000mm. For materials within 300mm thickness, the cutting is stable and fast, producing smooth surfaces without noticeable directional marks. Under normal operating current of 7-9A, the machining efficiency exceeds 12,000 mm²/hour, ranking it among the top performers in the industry.
The system offers a high level of automation with features such as edge detection, centering, axis shifting, and more. Operators can easily achieve machining tasks with minimal input. Key functions include multi-directional edge finding, slot centering, rectangular centering at various angles, three-point circle center location, rectangle frame centering, internal and external corner detection, and automatic angle alignment. For each probing operation, users can adjust the number of points and probing speed as needed to meet specific accuracy requirements.


The machine bed is made of high-strength cast iron with a T-shaped base and C-frame structure, providing excellent rigidity and strength. This design ensures good vibration resistance, stable accuracy, and long-term precision retention, making it ideal for high-precision EDM operations.
The electrical control board is independently developed in-house, ensuring full compatibility with the machine’s hardware and software systems. This self-developed design allows for greater customization, improved reliability, and more precise control over the EDM cutting process, resulting in enhanced performance and long-term stability.
